CNC Vertical Turning Centre · Massa · 2008/9

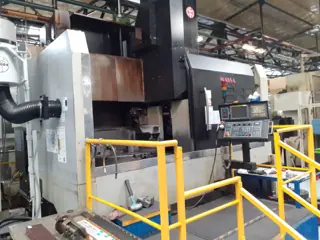

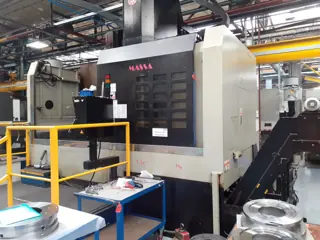

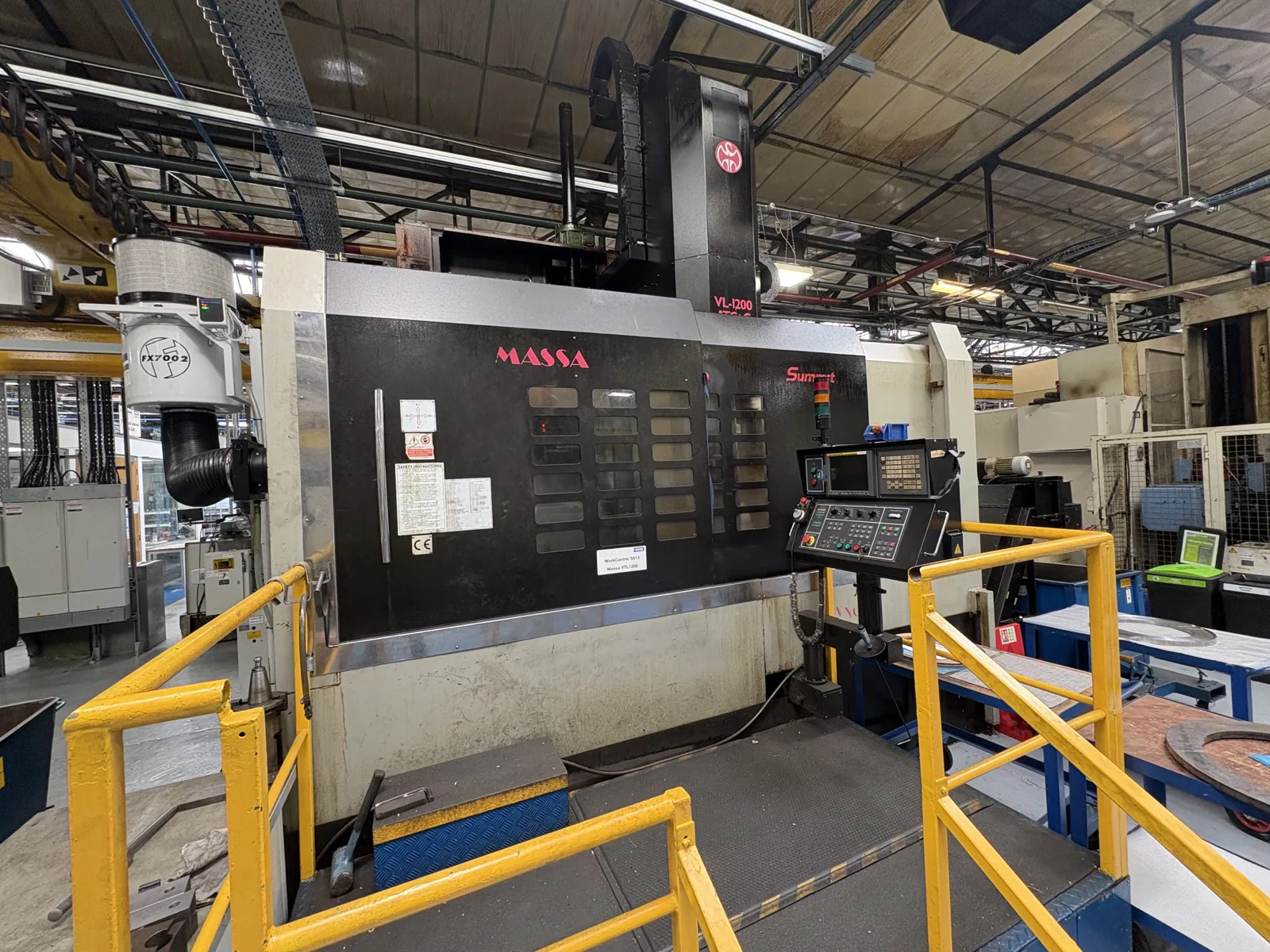

Massa MV-1200-ATC+C Vertical Turning, Boring & Milling Machine
Located with W&B UK

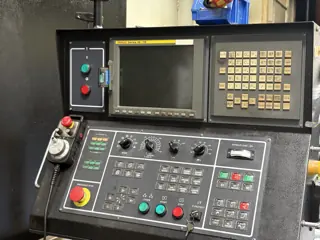

- Control Fanuc 18i-TB colour CNC
- Table 1,370mm, 4-jaw combination manual
- Max swing 1,600mm
- Turning dia. 1,350mm
- Turning height 1,350mm
- Load capacity 5,000kg
- Travels X/Z 1,475 / 900mm
- Table speed 2 – 300rpm (2 ranges)
- Main table drive 60/70kW (70/90hp)
- Milling spindle BT-50, to 2,400rpm, 11kW
- C-axis Full contouring, 360,000 positions
- ATC 16-station
- Elevating rail 800mm (4 × 200mm positions)
- Machine weight 33 tons
- Features Fully enclosed interlocked guarding, swarf conveyor, coolant system, oil cooler, status tower, ram block tool holders, 4 box-type table jaws, documentation
Buying this machine from the USA
This machine is located with Webster & Bennett in Oldbury, West Midlands, England. Scofield Machine Sales & Service has been the authorized Webster & Bennett representative for the Americas since 1993, and we handle the whole process on your behalf: pricing, inspection arrangements, export packing, ocean freight, customs clearance and delivery to your floor.
We also supply genuine OEM spares and tooling for these machines from US stock, so support does not end at delivery. One call gets the process started.
